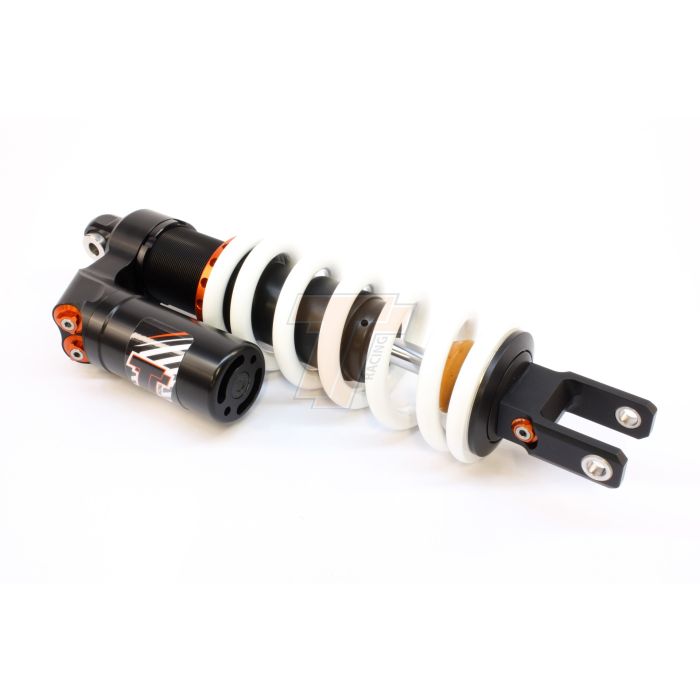

Yamaha Tenere 700 Rear Shock X-TREME Raised +25mm
€ 1.073,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.073,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46YA19-T5115-TO
Product Line
X-TREME
Product Type
Shock
Brand
Yamaha
Model
Tenere 700
Model Year
2019 - 2024
Height
Raised +25mm
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Mechanical
Spring type
Linear, included
Spring rate default (N/mm)
85
Rebound Position
10 (270 deg)
High Speed Compression Position
10
Low Speed Compression Position
10
Preload Spring (mm)
20
Spring -2 (Rate-Length)
75-235
Spring -1 (Rate-Length)
80-235
Spring default (Rate-Length)
85-235
Spring +1 (Rate-Length)
90-235
Spring +2 (Rate-Length)
95-235
Spring -2 Stock Code
46100241
Spring -1 Stock Code
46100110
Spring default Stock Code
46100042
Spring +1 Stock Code
46100043
Spring +2 Stock Code
46100111
Shock Length
379
Stroke M to M
105
Pressure
15
Bottom Angle A
200
Reservoir Length
100.00
Mount Upper Diameter
12.00
Mount Upper Width
35
Mount Lower Diameter
12.00
Mount Lower Width
30 (fork)
Remarks1
Rally spec's (+25mm)
