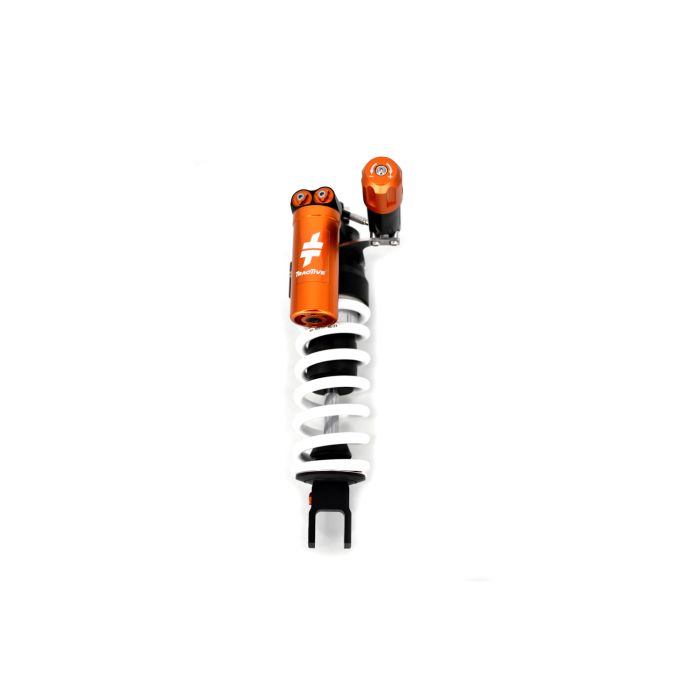

Yamaha Tenere 700 Rear Shock X-TREME + HPA Raised +25mm
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46YA19-T5519-TO
Product Line
X-TREME
Product Type
Shock
Brand
Yamaha
Model
Tenere 700
Model Year
2019 - 2024
Height
Raised +25mm
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Rebound Position
10 (270 deg)
High Speed Compression Position
10
Low Speed Compression Position
10
Preload Spring (mm)
20 +7,5/-7,5
Spring -2 (Rate-Length)
75-205
Spring -1 (Rate-Length)
80-205
Spring default (Rate-Length)
85-205
Spring +1 (Rate-Length)
90-205
Spring +2 (Rate-Length)
95-205
Spring -2 Stock Code
46100143
Spring -1 Stock Code
46100078
Spring default Stock Code
46100079
Spring +1 Stock Code
46100036
Spring +2 Stock Code
46100037
Shock Length
379
Stroke M to M
105-10=95
Pressure
15
Pa Angle A
230 H/195 Kn
Pa Angle B
Straight
Pa Angle C
325
Pa Angle D
320
Reservoir Length
100.00
Mount Upper Diameter
12.00
Mount Upper Width
35
Mount Lower Diameter
12.00
Mount Lower Width
30 (fork)
Remarks1
PA bracket between contranut and bottom
Remarks2
Packer H10 between bump and eye
Remarks3
No springretainer
Remarks4
Spacers on top of PA bracket
Remarks5
High springretainer
