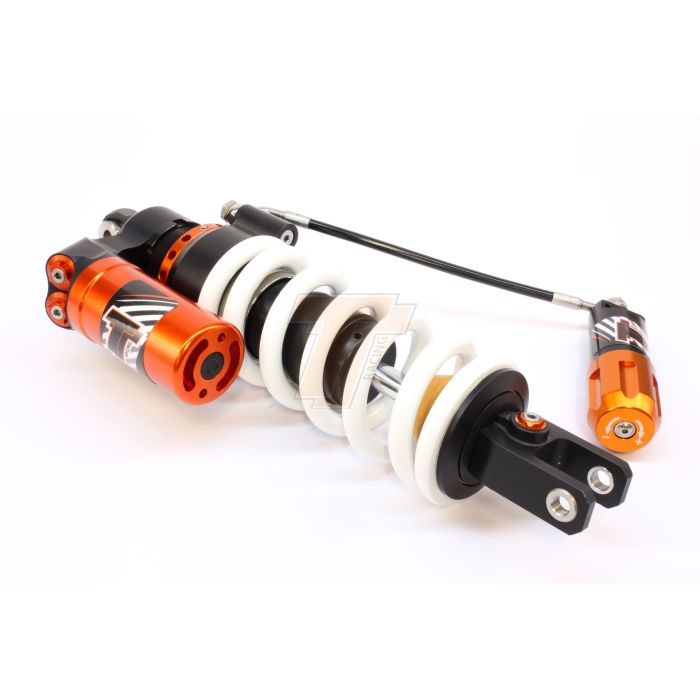

Yamaha Tenere 700 Rear Shock X-TREME + HPA
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46YA19-T5513-TO
Product Line
X-TREME
Product Type
Shock
Brand
Yamaha
Model
Tenere 700
Model Year
2019 - 2024
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
80
Rebound Position
10 (270 deg)
High Speed Compression Position
8
Low Speed Compression Position
8
Preload Spring (mm)
23 +5/-5
Spring -2 (Rate-Length)
70-205
Spring -1 (Rate-Length)
75-205
Spring default (Rate-Length)
80-205
Spring +1 (Rate-Length)
85-205
Spring +2 (Rate-Length)
90-205
Spring -2 Stock Code
46100183
Spring -1 Stock Code
46100143
Spring default Stock Code
46100078
Spring +1 Stock Code
46100079
Spring +2 Stock Code
46100036
Shock Length
371
Stroke M to M
97
Pressure
15
Bottom Angle A
200
Pa Angle A
220 H/195 Kn
Pa Angle B
Straight
Pa Angle C
325
Pa Angle D
320
Reservoir Length
100.00
Mount Upper Diameter
12.00
Mount Upper Width
35
Mount Lower Diameter
12.00
Mount Lower Width
30 (fork)
Remarks1
Fit knob on bracket and rotate tension away
Remarks2
Uni.bracket between contranut.
Remarks3
Bush on top of PA bracket. Springret.46000229
Remarks4
Productie check met blok KTM28 (PA angle A)
