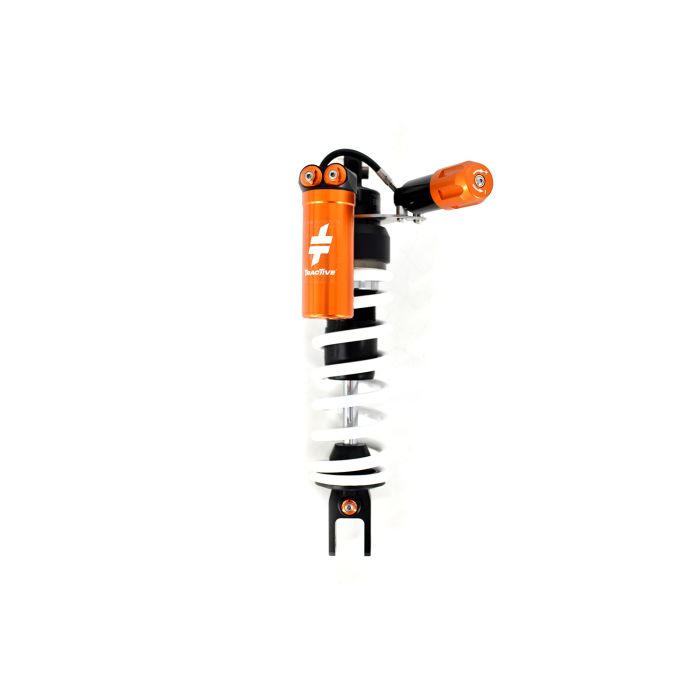

Yamaha Tenere 700 Rear Shock Extreme2 + HPA
€ 1.421,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.421,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46YA25-T5545-TO
Product Line
Extreme2
Product Type
Shock
Brand
Yamaha
Model
Tenere 700
Model Year
2025 - 2026
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
70
Rebound Position
12 (180 deg)
High Speed Compression Position
10
Low Speed Compression Position
12
Preload Spring (mm)
19 +5/-5
Spring -1 (Rate-Length)
65-235
Spring default (Rate-Length)
70-235
Spring +1 (Rate-Length)
75-235
Spring +2 (Rate-Length)
80-235
Spring -1 Stock Code
46100251
Spring default Stock Code
46100204
Spring +1 Stock Code
46100241
Spring +2 Stock Code
46100110
Shock Length
387
Stroke M to M
104
Pressure
15
Pa Angle A
230 (40)
Pa Angle B
Straight
Pa Angle C
130
Pa Angle D
Mount on bracket
Reservoir Length
120.00
Mount Upper Diameter
12.00
Mount Upper Width
35
Mount Lower Diameter
12.00
Mount Lower Width
30 (fork)
Remarks1
Uni bracket between contranut and bottom
Remarks2
Spacer on top of uni bracket
Remarks4
Xtreme 2 model
