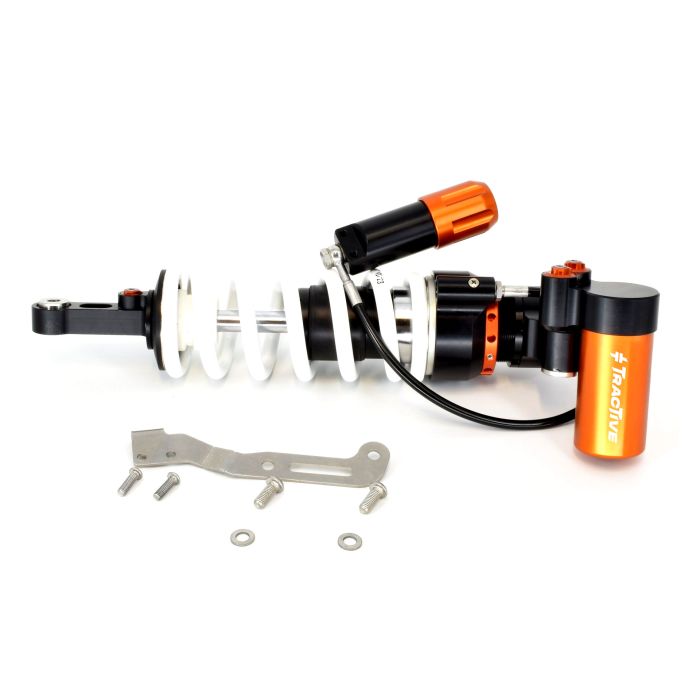

KTM 690 Enduro R Rear Shock + HPA
€ 1.444,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.444,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46KT19-T9535-TRBK
Product Type
Shock
Brand
KTM
Model
690 Enduro R
Model Year
2019 - 2026
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
75
Rebound Position
12 (270 deg)
High Speed Compression Position
10
Low Speed Compression Position
12
Preload Spring (mm)
16 +12/-3
Spring -2 (Rate-Length)
65-205
Spring -1 (Rate-Length)
70-205
Spring default (Rate-Length)
75-205
Spring +1 (Rate-Length)
80-205
Spring +2 (Rate-Length)
85-205
Spring -2 Stock Code
46100142
Spring -1 Stock Code
46100183
Spring default Stock Code
46100143
Spring +1 Stock Code
46100078
Spring +2 Stock Code
46100079
Shock Length
396
Stroke M to M
98
Pressure
15
Bottom Angle A
177 (90200443)
Bottom Angle B
31 (90200443)
Pa Angle A
225
Pa Angle B
Straigth on house
Pa Angle C
190
Pa Angle D
70
Reservoir Length
100.00
Mount Upper Diameter
10.00
Mount Upper Width
28
Mount Lower Diameter
10.00
Mount Lower Width
22
Remarks1
ALU FILLING PLUG
Remarks2
Use lockbolt 46000970 for angle bottompiece
Remarks3
Long adaptor on 270deg
Remarks5
Angle check tool 90200444
