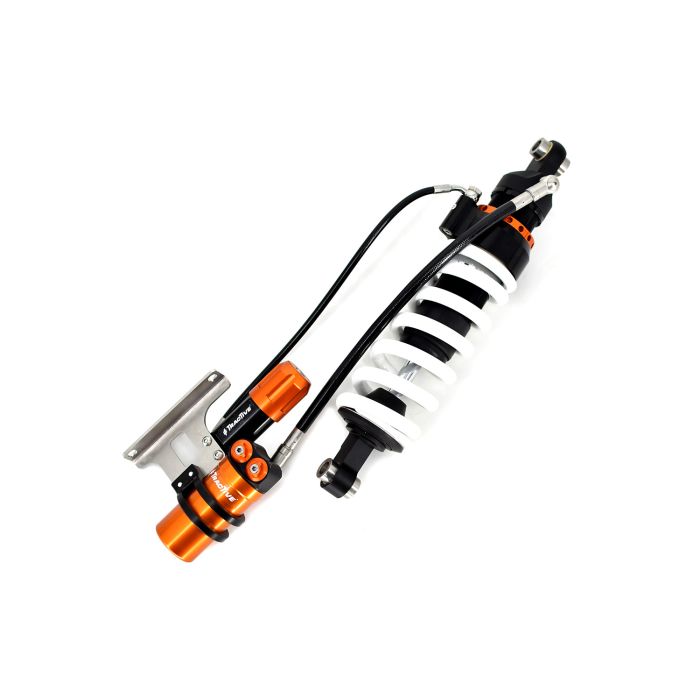

KOVE 450 RALLY Rear Shock X-TREME + HPA
€ 1.361,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.361,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46KO24-T7501-TRBK
Product Line
X-TREME
Product Type
Shock
Brand
KOVE
Model
450 RALLY
Model Year
2024 - 2025
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Special remark
High seat version
Rebound Position
10 (0 deg)
High Speed Compression Position
10
Low Speed Compression Position
10
Preload Spring (mm)
10 +8/-2
Spring -1 (Rate-Length)
60-225
Spring default (Rate-Length)
65-235
Spring +1 (Rate-Length)
70-235
Spring -1 Stock Code
46100009
Spring default Stock Code
46100251
Spring +1 Stock Code
46100204
Shock Length
452
Stroke M to M
124
Pressure
15
Pa Angle A
270
Pa Angle B
90
Pa Angle C
20
Reservoir Length
100.00
Mount Upper Diameter
10.00
Mount Upper Width
22
Mount Lower Diameter
10.00
Mount Lower Width
20
Remarks1
PA Hose house going down 45deg
Remarks2
PA Hose knob going up 70deg
Remarks3
NO PROTECTION SLEEVE
