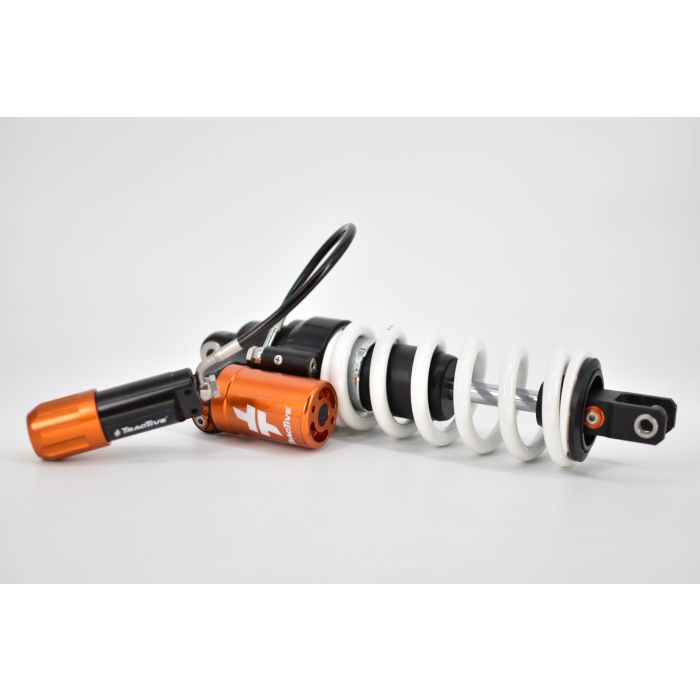

Honda XL750 Transalp Rear Shock X-TREME + HPA
€ 1.361,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.361,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46HO23-T5522-TRBK
Product Line
X-TREME
Product Type
Shock
Brand
Honda
Model
XL750 Transalp
Model Year
2023 - 2025
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
100
Rebound Position
10 (270 deg)
High Speed Compression Position
10
Low Speed Compression Position
10
Preload Spring (mm)
17 +8/-2
Spring -2 (Rate-Length)
90-205
Spring -1 (Rate-Length)
95-205
Spring default (Rate-Length)
100-205
Spring +1 (Rate-Length)
110-205
Spring +2 (Rate-Length)
120-205
Spring -2 Stock Code
46100036
Spring -1 Stock Code
46100037
Spring default Stock Code
46100038
Spring +1 Stock Code
46100112
Spring +2 Stock Code
46100120
Shock Length
347
Stroke M to M
83
Pressure
15
Bottom Angle A
285
Pa Angle A
250
Pa Angle B
240
Reservoir Length
80.00
Mount Upper Diameter
10.00
Mount Upper Width
30
Mount Lower Diameter
10.00
Mount Lower Width
30 (fork)
Remarks1
Cup 46000301 upsd
Remarks2
Spring retainer 46070229 max heigth
Remarks3
PA Hose 70deg on knob going up
