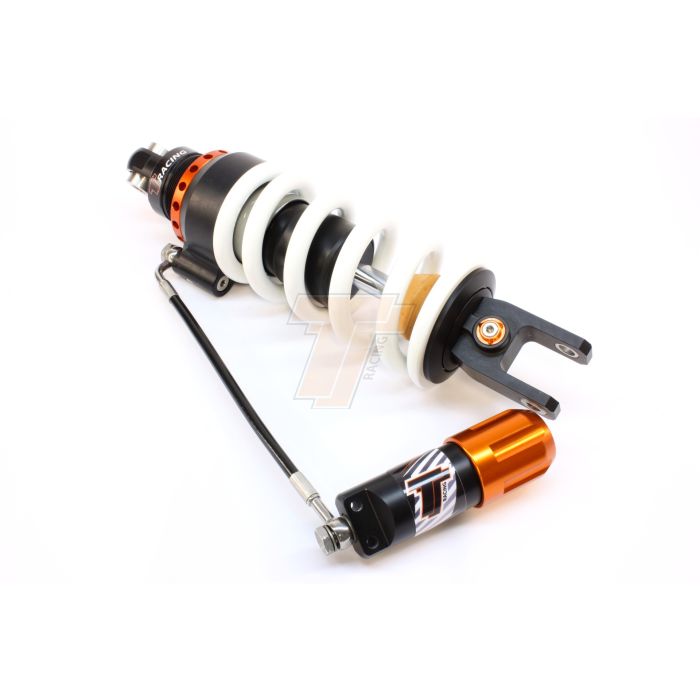

Honda X-ADV 750 Rear Shock X-CITE + HPA
€ 1.030,50
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.030,50
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46HO21-R3526-TRBK
Product Line
X-CITE
Product Type
Shock
Brand
Honda
Model
X-ADV 750
Model Year
2021 - 2025
Height
Standard
Installation location
REAR
Damping adjustment
Rebound
Damping system
Separated oil/gas
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
140
Rebound Position
10 (180 deg)
Preload Spring (mm)
8 +15/0
HPA/EPA Position (mm)
3
Spring -2 (Rate-Length)
120-145
Spring -1 (Rate-Length)
130-145
Spring default (Rate-Length)
140-145
Spring +1 (Rate-Length)
150-145
Spring -2 Stock Code
46100219
Spring -1 Stock Code
46100084
Spring default Stock Code
46100085
Spring +1 Stock Code
46100086
Shock Length
312
Stroke M to M
59
Pressure
15
Pa Angle A
330
Pa Angle B
270
Pa Angle C
80
Pa Angle D
180
Sep Pist Position
35 from top
Mount Upper Diameter
10.00
Mount Upper Width
28
Mount Lower Diameter
10.00
Mount Lower Width
39
Remarks1
Banjo 70 on house going up
