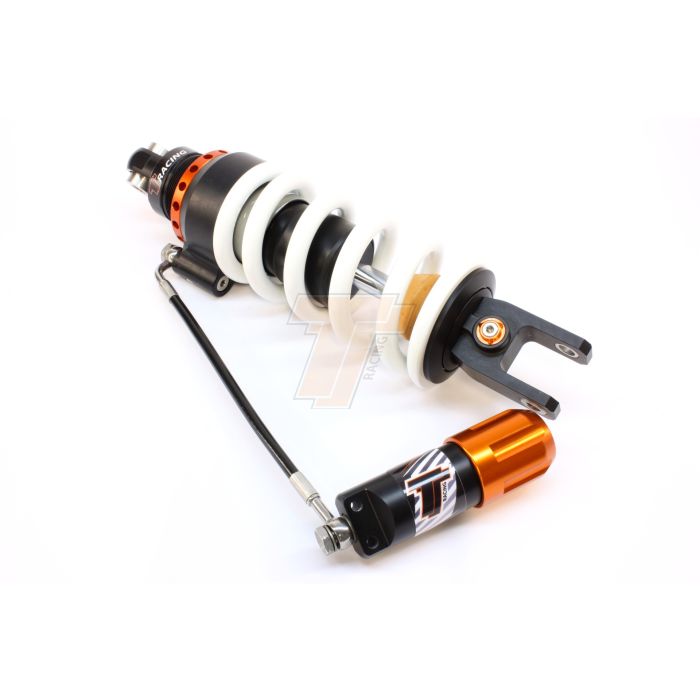

Honda CRF300 L/R Rear Shock X-CITE + HPA Lowered -40mm
€ 948,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 948,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46HO21-R3518-TRBK
Product Line
X-CITE
Product Type
Shock
Brand
Honda
Model
CRF300 L/R
Model Year
2021 - 2025
Height
Lowered -40mm
Installation location
REAR
Damping adjustment
Rebound
Damping system
Separated oil/gas
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
90
Special remark
Standard seat height (due to firmer spring rate)
Special remark 2
Side and/or center stand might be too long
Rebound Position
10 (90 deg)
Preload Spring (mm)
14 (EPA on min position)
Spring -2 (Rate-Length)
80-205
Spring -1 (Rate-Length)
85-205
Spring default (Rate-Length)
90-205
Spring +1 (Rate-Length)
95-205
Spring +2 (Rate-Length)
100-205
Spring -2 Stock Code
46100078
Spring -1 Stock Code
46100079
Spring default Stock Code
46100036
Spring +1 Stock Code
46100037
Spring +2 Stock Code
46100038
Shock Length
398
Stroke M to M
84
Pressure
20
Pa Angle A
225
Pa Angle B
90
Pa Angle C
240
Sep Pist Position
130
Mount Upper Diameter
10.00
Mount Upper Width
30
Mount Lower Diameter
10.00
Mount Lower Width
30 (fork)
Remarks1
Shock low version but ride height standard
Remarks2
Special springretainerwith flat side on 0 deg
Remarks3
PA Hose 70deg on house going down
Remarks4
PA Hose 45deg on knob going up
