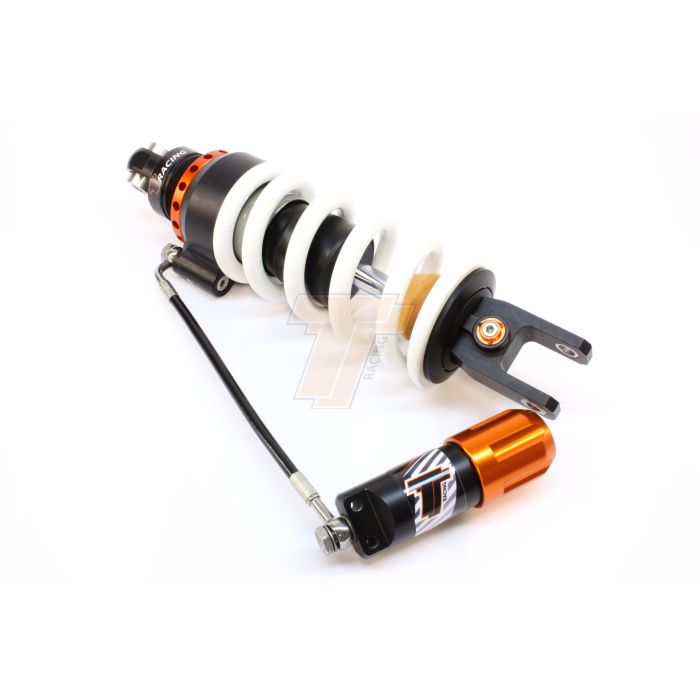

Honda CRF300 L/R Rear Shock X-CITE + HPA
€ 948,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 948,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46HO21-R3517-TRBK
Product Line
X-CITE
Product Type
Shock
Brand
Honda
Model
CRF300 L/R
Model Year
2021 - 2025
Height
Standard
Installation location
REAR
Damping adjustment
Rebound
Damping system
Separated oil/gas
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
90
Special remark
Higher seat height (due to firmer spring rate)
Rebound Position
10 (90 deg)
Preload Spring (mm)
13 (HPA on min position)
Spring -2 (Rate-Length)
80-235
Spring -1 (Rate-Length)
85-235
Spring default (Rate-Length)
90-235
Spring +1 (Rate-Length)
95-235
Spring +2 (Rate-Length)
100-235
Spring -2 Stock Code
46100110
Spring -1 Stock Code
46100042
Spring default Stock Code
46100043
Spring +1 Stock Code
46100111
Spring +2 Stock Code
46100152
Shock Length
412
Stroke M to M
98
Pressure
20
Pa Angle A
225
Pa Angle B
90
Pa Angle C
240
Sep Pist Position
130
Mount Upper Diameter
10.00
Mount Upper Width
30
Mount Lower Diameter
10.00
Mount Lower Width
30 (fork)
Remarks1
Special springretainerwith flat side on 0 deg
Remarks2
Shock length standard but ride height+40
Remarks3
PA Hose 70deg on house going down
Remarks4
PA Hose 45deg on knob going up
