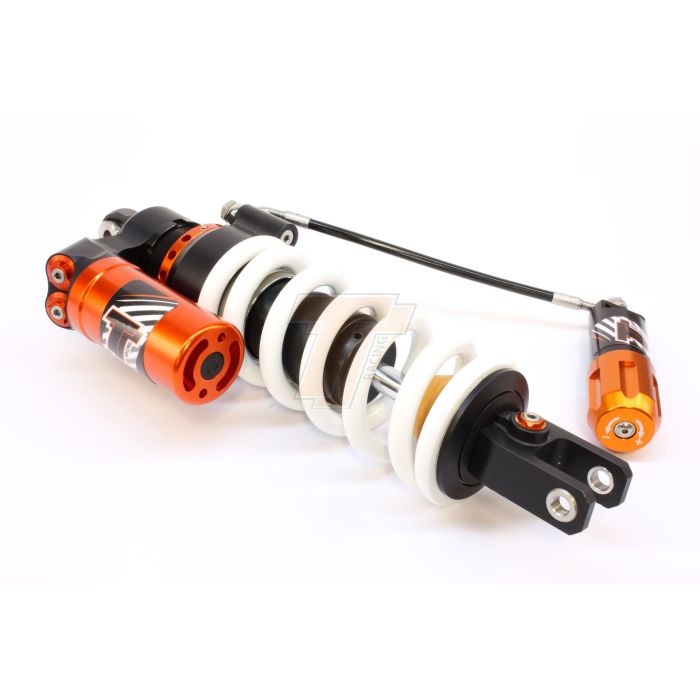

Honda CRF1100L Africa Twin Rear Shock X-TREME Lowered -25mm
€ 1.361,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.361,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46HO20-T5514-TRBK
Product Line
X-TREME
Product Type
Shock
Brand
Honda
Model
CRF1100L Africa Twin
Model Year
2020 - 2025
Height
Lowered -25mm
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Special remark
Side and/or center stand might be too long
Rebound Position
12
High Speed Compression Position
10
Low Speed Compression Position
12
Preload Spring (mm)
17 +10/-5
Spring -2 (Rate-Length)
75-205
Spring -1 (Rate-Length)
80-205
Spring default (Rate-Length)
85-205
Spring +1 (Rate-Length)
90-205
Spring +2 (Rate-Length)
95-205
Spring -2 Stock Code
46100143
Spring -1 Stock Code
46100078
Spring default Stock Code
46100079
Spring +1 Stock Code
46100036
Spring +2 Stock Code
46100037
Shock Length
380
Stroke M to M
91
Pressure
15
Bottom Angle A
127.5
Pa Angle A
300 House / 265 Knob
Pa Angle B
285 (B20 on house)
Pa Angle C
90
Reservoir Length
80.00
Mount Upper Diameter
10.00
Mount Upper Width
30
Mount Lower Diameter
10.00
Mount Lower Width
30 (fork)
Remarks1
Rebound position LEFT side 270 deg
Remarks2
PA not on bracket. It doesn't fit in the box
Remarks3
Inbus 90100055 extra in box
