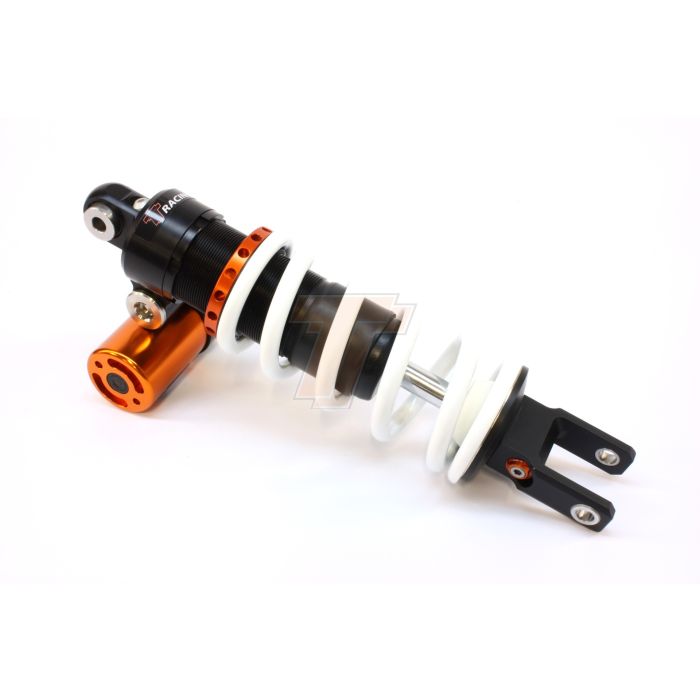

Ducati DesertX Rear Shock X-TREME
€ 1.073,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.073,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46DU21-T5106-TO
Product Line
X-TREME
Product Type
Shock
Brand
Ducati
Model
DesertX
Model Year
2021 - 2025
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Mechanical
Spring type
Linear, included
Spring rate default (N/mm)
85
Rebound Position
9 (180 deg)
High Speed Compression Position
10
Low Speed Compression Position
12
Preload Spring (mm)
18
Spring -2 (Rate-Length)
75-205
Spring -1 (Rate-Length)
80-205
Spring default (Rate-Length)
85-205
Spring +1 (Rate-Length)
90-205
Spring +2 (Rate-Length)
95-205
Spring -2 Stock Code
46100143
Spring -1 Stock Code
46100078
Spring default Stock Code
46100079
Spring +1 Stock Code
46100036
Spring +2 Stock Code
46100037
Shock Length
350
Stroke M to M
96
Pressure
15
Bottom Angle A
270
Reservoir Length
80.00
Mount Upper Diameter
10.00
Mount Upper Width
22
Mount Lower Diameter
10.00
Mount Lower Width
22
Remarks1
X-TREME PRO set-up
