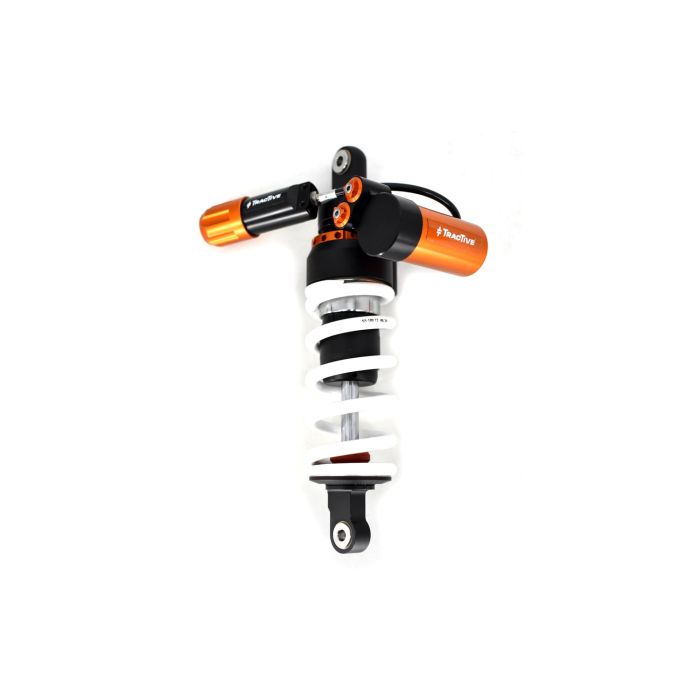

CFMOTO 450 MT Rear Shock X-TREME Raised +25mm
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46CF24-T9502-RR
Product Line
X-TREME
Product Type
Shock
Brand
CFMOTO
Model
450 MT
Model Year
2024 - 2025
Height
Raised +25mm
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Rebound Position
12 (0 deg)
High Speed Compression Position
10
Low Speed Compression Position
10
Preload Spring (mm)
8 +7/-3
Spring -2 (Rate-Length)
85-180
Spring -1 (Rate-Length)
90-180
Spring default (Rate-Length)
95-180
Spring +1 (Rate-Length)
100-180
Spring +2 (Rate-Length)
110-180
Spring -2 Stock Code
46100095
Spring -1 Stock Code
46100090
Spring default Stock Code
46100091
Spring +1 Stock Code
46100092
Spring +2 Stock Code
46100109
Shock Length
358
Stroke M to M
90
Pressure
15
Bottom Angle A
180
Bottom Angle B
B - 140
Pa Angle A
90
Pa Angle B
90
Pa Angle C
Straigth
Reservoir Length
100.00
Mount Upper Diameter
10.00
Mount Upper Width
25
Mount Lower Diameter
10.00
Mount Lower Width
22
