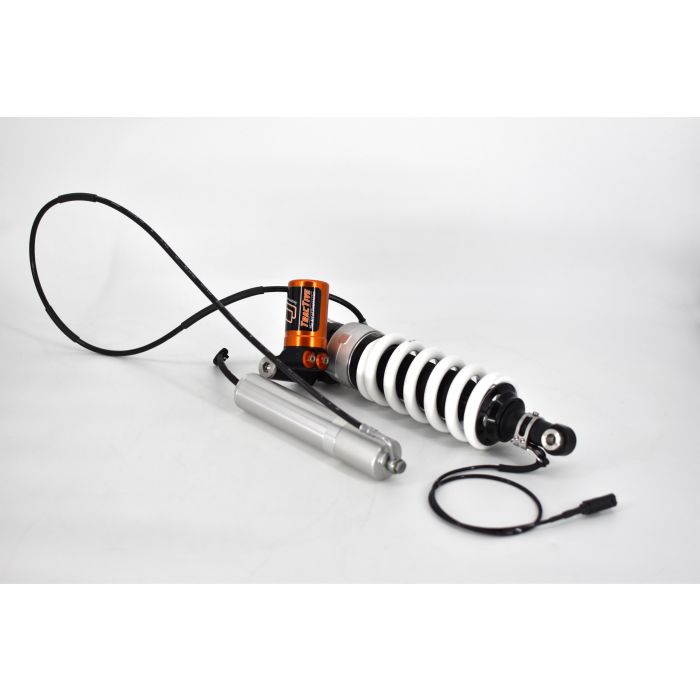

BMW S 1000 XR Rear Shock eX-CHANGE PRO
€ 1.444,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.444,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM20-P8114-TRBK
Product Line
eX-CHANGE PRO
Product Type
Shock
Brand
BMW
Model
S 1000 XR
Model Year
2020 - 2027
Height
Standard
Installation location
REAR
Damping adjustment
Electronic & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Piston diameter (mm)
46
Preload adjustment
Electro-hydraulic, Original to be re-used
Spring type
Linear, included
Spring rate default (N/mm)
180
Rebound Position
Cable exit (0 deg)
High Speed Compression Position
10
Low Speed Compression Position
10
Preload Spring (mm)
9
Spring -2 (Rate-Length)
160-180
Spring -1 (Rate-Length)
170-180
Spring default (Rate-Length)
180-180
Spring +1 (Rate-Length)
190-180
Spring +2 (Rate-Length)
200-180
Spring -2 Stock Code
46100062
Spring -1 Stock Code
46100051
Spring default Stock Code
46100052
Spring +1 Stock Code
46100053
Spring +2 Stock Code
46100064
Shock Length
392
Stroke M to M
58
Pressure
15
Bottom Angle B
see remark
Reservoir Length
80.00
Length Cable
MAX
Length Cable EPA
std
Mount Upper Diameter
12.00
Mount Upper Width
38
Mount Lower Diameter
12.00
Mount Lower Width
38
Remarks1
BLEED 1,0
Remarks2
Pre-drilled hole 65deg
Remarks3
OEM EPA - Pin locked in bottompiece
Remarks4
Protection sleeve loose in box
Remarks5
Stickers like layout / Grommet on 50mm
