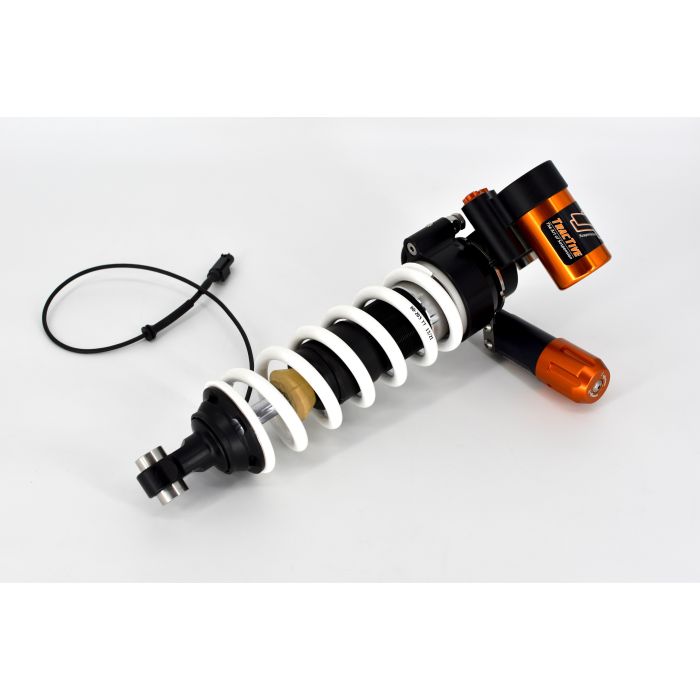

BMW S 1000 RR Rear Shock eX-TREME + HPA
€ 1.486,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.486,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM20-P4513-WU
Product Line
eX-TREME
Product Type
Shock
Brand
BMW
Model
S 1000 RR
Model Year
2019 - 2027
Height
Standard
Installation location
REAR
Damping adjustment
Electronic & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear + top out, included
Spring rate default (N/mm)
60
Rebound Position
Cable exit (0 deg)
High Speed Compression Position
12
Low Speed Compression Position
12
Preload Spring (mm)
5 +13/-2
Spring -2 (Rate-Length)
55-205
Spring -1 (Rate-Length)
57.5-205
Spring default (Rate-Length)
60-205
Spring +1 (Rate-Length)
62.5-205
Spring +2 (Rate-Length)
65-205
Spring -2 Stock Code
46100034
Spring -1 Stock Code
46100280
Spring default Stock Code
46100035
Spring +1 Stock Code
46100281
Spring +2 Stock Code
46100142
Shock Length
369
Stroke M to M
77.5
Pressure
15
Pa Angle A
255
Pa Angle B
100
Pa Angle C
Straight
Pa Angle D
90
Reservoir Length
80.00
Length Cable
650
Mount Upper Diameter
12.00
Mount Upper Width
33
Mount Lower Diameter
12.00
Mount Lower Width
38
Remarks1
PA Bracket between bottom and contra. (See layout)
Remarks2
Spacer 46000368 under bumprubber
Remarks3
Clable holder in springretainer for DDA cable
Remarks4
Teflon bearings both sides spring
Remarks5
Needle bearings! Adaptors after mounted 3mm wider!
