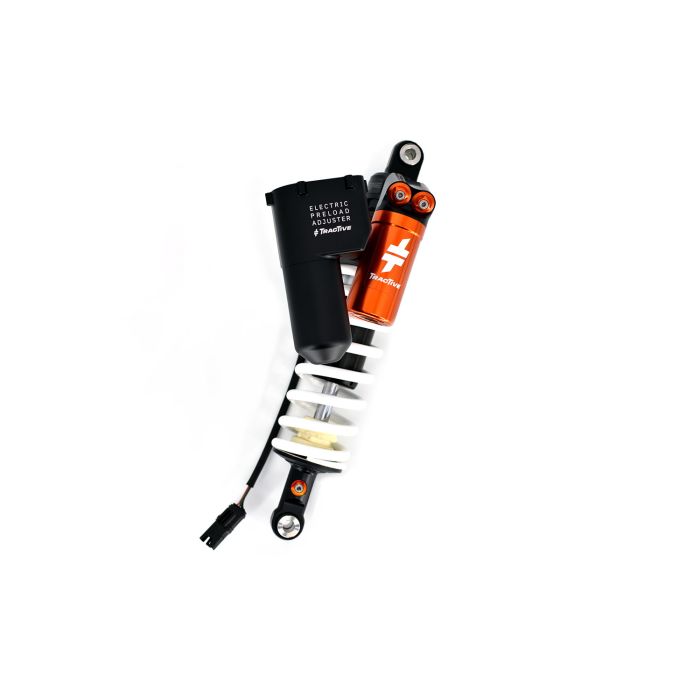

BMW R 1250 GS Rear Shock Extreme2 + EPA2
€ 2.132,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 2.132,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM18-T5849-TO
Product Line
Extreme2
Product Type
Shock
Brand
BMW
Model
R 1250 GS
Model Year
2018 - 2024
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Electro-hydraulic
Spring type
Linear, included
Rebound Position
10 (0 deg)
High Speed Compression Position
11
Low Speed Compression Position
11
Preload Spring (mm)
10 (EPA on min position)
Spring -2 (Rate-Length)
130-205
Spring -1 (Rate-Length)
140-205
Spring default (Rate-Length)
150-205
Spring +1 (Rate-Length)
160-205
Spring +2 (Rate-Length)
170-205
Spring -2 Stock Code
46100054
Spring -1 Stock Code
46100030
Spring default Stock Code
46100031
Spring +1 Stock Code
46100032
Spring +2 Stock Code
46100044
Shock Length
402
Stroke M to M
87
Pressure
15
Bottom Angle A
100
Pa Angle A
100
Reservoir Length
100.00
Mount Upper Diameter
12.00
Mount Upper Width
30
Mount Lower Diameter
12.00
Mount Lower Width
38
Remarks1
Xtreme2 model
Remarks2
Cancellation kit !!!
