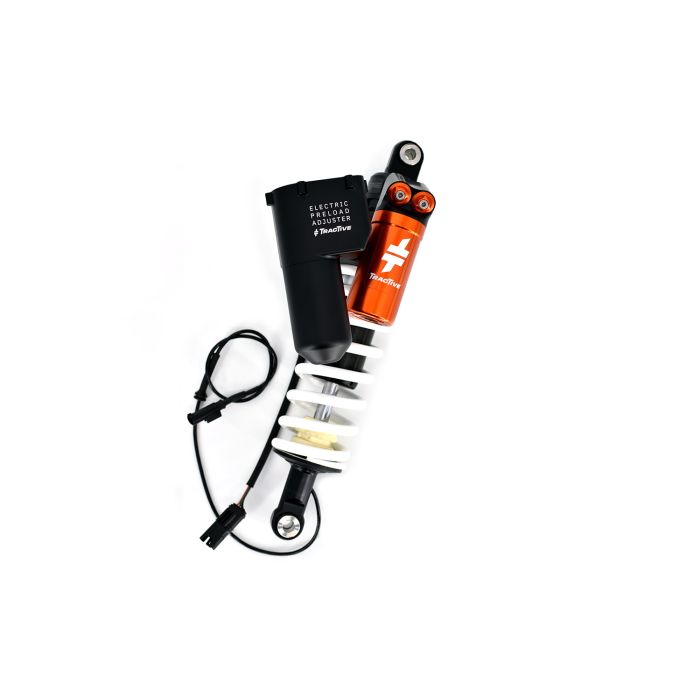

BMW R 1250 GS Rear Shock Extreme2 + EPA2
€ 2.082,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 2.082,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM18-P4871-TO
Product Line
Extreme2
Product Type
Shock
Brand
BMW
Model
R 1250 GS
Model Year
2018 - 2024
Height
Standard
Installation location
REAR
Damping adjustment
Electronic & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Piston diameter (mm)
46
Preload adjustment
Electro-hydraulic
Spring type
Linear, included
Rebound Position
Cable exit (0 deg)
High Speed Compression Position
12
Low Speed Compression Position
12
Preload Spring (mm)
10 (EPA on min position)
Spring -2 (Rate-Length)
130-205
Spring -1 (Rate-Length)
140-205
Spring default (Rate-Length)
150-205
Spring +1 (Rate-Length)
160-205
Spring +2 (Rate-Length)
170-205
Spring -2 Stock Code
46100054
Spring -1 Stock Code
46100030
Spring default Stock Code
46100031
Spring +1 Stock Code
46100032
Spring +2 Stock Code
46100044
Shock Length
402
Stroke M to M
83
Pressure
15
Pa Angle A
100
Reservoir Length
100.00
Length Cable
max with grommet
Length Cable EPA
max
Mount Upper Diameter
12.00
Mount Upper Width
30
Mount Lower Diameter
12.00
Mount Lower Width
38
Remarks1
BLEED 1,0
Remarks2
Cable grommet on 170mm from eyelet
