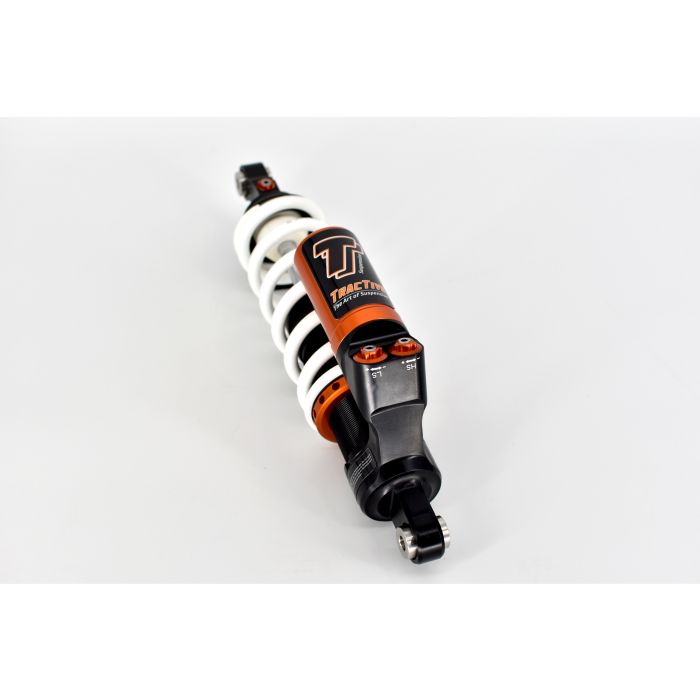

BMW R 1250 GS Front Shock Extreme2
€ 1.305,50
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.305,50
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM18-T5160-TO
Product Line
Extreme2
Product Type
Shock
Brand
BMW
Model
R 1250 GS
Model Year
2018 - 2024
Height
Standard
Installation location
Front
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Mechanical
Spring type
Linear, included
Rebound Position
10 (0 deg)
High Speed Compression Position
12
Low Speed Compression Position
12
Preload Spring (mm)
10
Spring -1 (Rate-Length)
48-205
Spring default (Rate-Length)
50-205
Spring +1 (Rate-Length)
55-205
Spring +2 (Rate-Length)
60-205
Spring -1 Stock Code
46100141
Spring default Stock Code
46100033
Spring +1 Stock Code
46100034
Spring +2 Stock Code
46100035
Shock Length
389
Stroke M to M
100
Pressure
15
Reservoir Length
100.00
Mount Upper Diameter
10.00
Mount Upper Width
30
Mount Lower Diameter
10.00
Mount Lower Width
30
Remarks1
X-TREME 2 Model
Remarks2
Bottom under (Lasering upsd)
Remarks3
Cancellation kit required for ESA bikes
