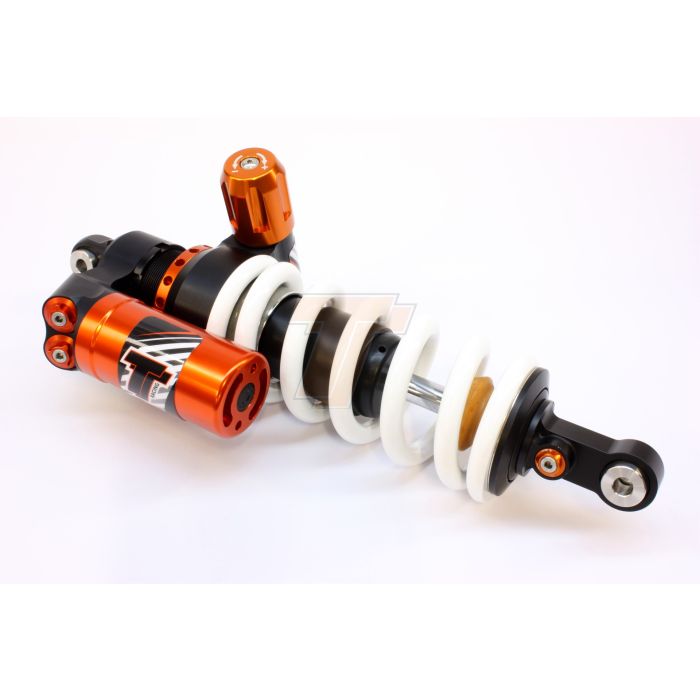

BMW R 1200 GS Rear Shock X-TREME + HPA
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM13-T5329-TO
Product Line
X-TREME
Product Type
Shock
Brand
BMW
Model
R 1200 GS
Model Year
2013 - 2017
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
150
Rebound Position
10 (0 deg)
High Speed Compression Position
11
Low Speed Compression Position
11
Preload Spring (mm)
14 +12,5/-2,5
Spring -2 (Rate-Length)
130-205
Spring -1 (Rate-Length)
140-205
Spring default (Rate-Length)
150-205
Spring +1 (Rate-Length)
160-205
Spring +2 (Rate-Length)
170-205
Spring -2 Stock Code
46100054
Spring -1 Stock Code
46100030
Spring default Stock Code
46100031
Spring +1 Stock Code
46100032
Spring +2 Stock Code
46100044
Shock Length
402
Stroke M to M
82
Pressure
15
Bottom Angle A
90
Pa Angle A
105
Reservoir Length
100.00
Mount Upper Diameter
12.00
Mount Upper Width
30
Mount Lower Diameter
12.00
Mount Lower Width
38
Remarks1
Demper kan niet langer dan 406 mm
Remarks2
Rebound position 350 deg
