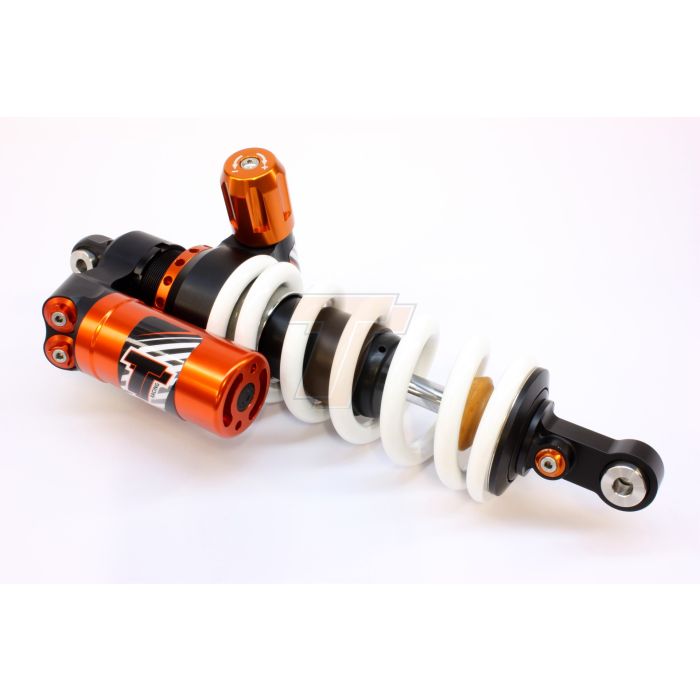

BMW R 1200 GS Rear Shock X-TREME + HPA
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.321,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM04-T5304-TO
Product Line
X-TREME
Product Type
Shock
Brand
BMW
Model
R 1200 GS
Model Year
2004 - 2012
Height
Standard
Installation location
REAR
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
140
Rebound Position
10
High Speed Compression Position
11
Low Speed Compression Position
11
Preload Spring (mm)
15 +12/-3
Spring -2 (Rate-Length)
120-205
Spring -1 (Rate-Length)
130-205
Spring default (Rate-Length)
140-205
Spring +1 (Rate-Length)
150-205
Spring +2 (Rate-Length)
160-205
Spring -2 Stock Code
46100120
Spring -1 Stock Code
46100054
Spring default Stock Code
46100030
Spring +1 Stock Code
46100031
Spring +2 Stock Code
46100032
Shock Length
401
Stroke M to M
87
Pressure
15
Bottom Angle A
270
Pa Angle A
120
Reservoir Length
100.00
Mount Upper Diameter
10.00
Mount Upper Width
32
Mount Lower Diameter
10.00
Mount Lower Width
40
Remarks1
Rebound position 270 deg
Remarks2
Rebound position 270 deg
