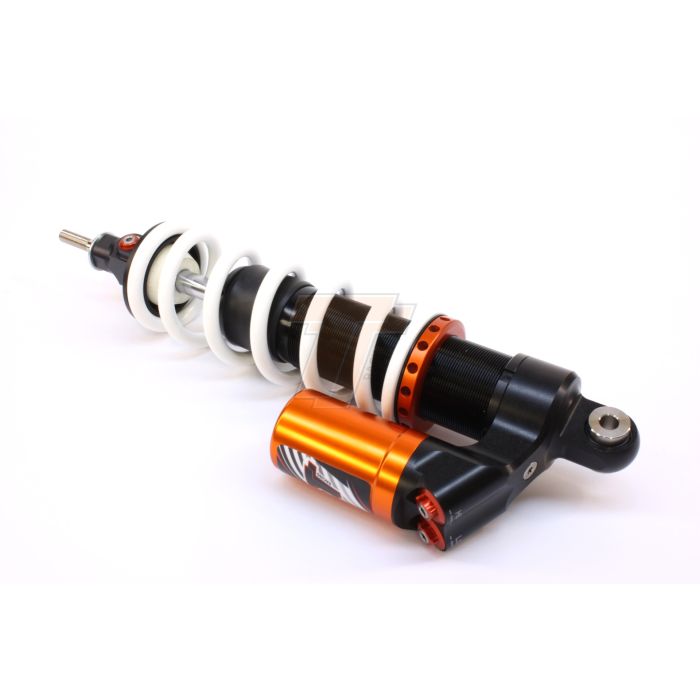

BMW R 1200 GS Front Shock X-TREME
€ 1.073,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.073,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM04-T5106-TO
Product Line
X-TREME
Product Type
Shock
Brand
BMW
Model
R 1200 GS
Model Year
2004 - 2012
Height
Standard
Installation location
Front
Damping adjustment
Rebound & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Damping feature
PDSII anti-bottoming
Piston diameter (mm)
46
Preload adjustment
Mechanical
Spring type
Linear, included
Spring rate default (N/mm)
50
Rebound Position
10 (180 deg)
High Speed Compression Position
14
Low Speed Compression Position
14
Preload Spring (mm)
14
Spring -1 (Rate-Length)
48-205
Spring default (Rate-Length)
50-205
Spring +1 (Rate-Length)
55-205
Spring +2 (Rate-Length)
60-205
Spring -1 Stock Code
46100141
Spring default Stock Code
46100033
Spring +1 Stock Code
46100034
Spring +2 Stock Code
46100035
Shock Length
340,5
Stroke M to M
85
Pressure
15
Bottom Angle A
180
Reservoir Length
100.00
Mount Upper Diameter
10.00
Mount Upper Width
30
Remarks1
PDSII inside
Remarks2
Shock mounted upsd - Pay attention to the sticker
