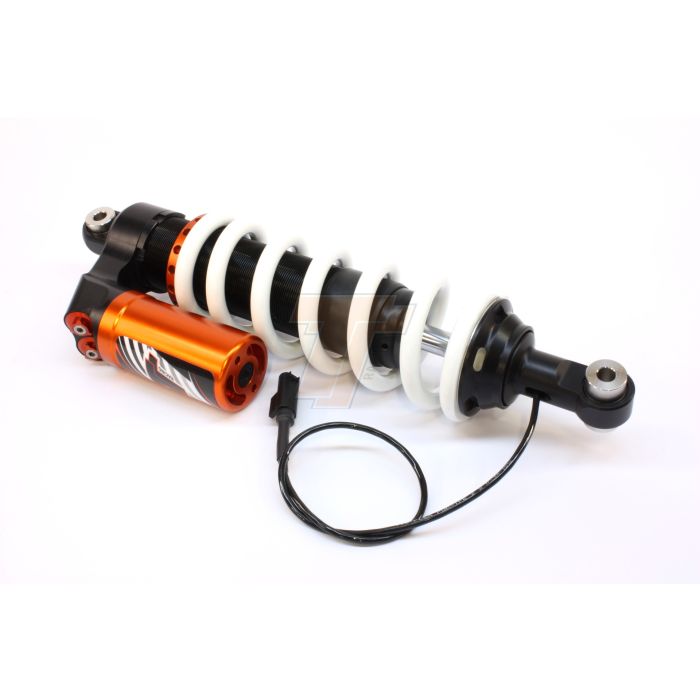

BMW R 1200 GS Front Shock eX-PERIENCE
€ 1.073,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.073,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM13-P4140-TO
Product Line
eX-PERIENCE
Product Type
Shock
Brand
BMW
Model
R 1200 GS
Model Year
2013 - 2017
Height
Standard
Installation location
Front
Damping adjustment
Electronic & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Piston diameter (mm)
46
Preload adjustment
Mechanical
Spring type
Linear, included
Spring rate default (N/mm)
50
Rebound Position
Cable exit (180 deg)
High Speed Compression Position
12
Low Speed Compression Position
12
Preload Spring (mm)
9
Spring -1 (Rate-Length)
48-205
Spring default (Rate-Length)
50-205
Spring +1 (Rate-Length)
55-205
Spring +2 (Rate-Length)
60-205
Spring -1 Stock Code
46100141
Spring default Stock Code
46100033
Spring +1 Stock Code
46100034
Spring +2 Stock Code
46100035
Shock Length
389
Stroke M to M
95
Pressure
10
Bottom Angle A
180
Reservoir Length
100.00
Length Cable
750
Mount Upper Diameter
10.00
Mount Upper Width
30
Mount Lower Diameter
10.00
Mount Lower Width
30
Remarks1
Bottom up. No Bleed
Remarks2
Exit cable on reservoir side
