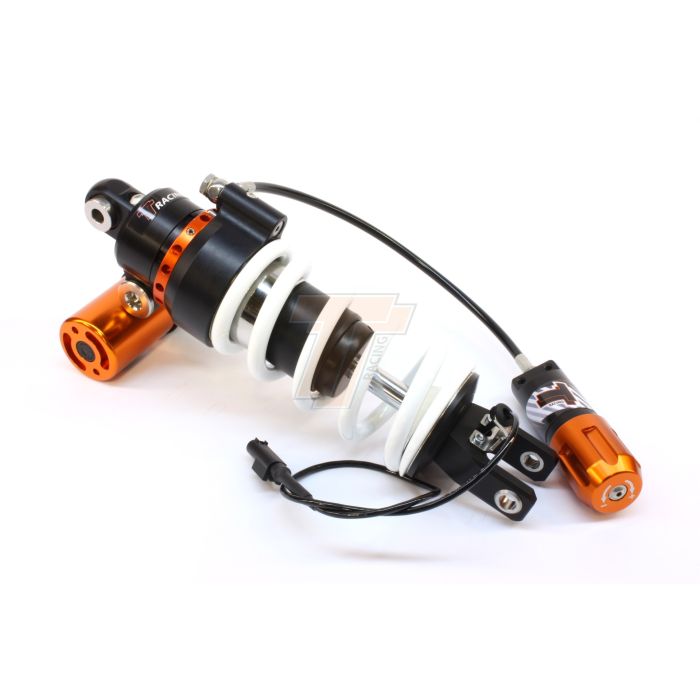

BMW M 1000 XR Rear Shock eX-TREME + HPA
€ 1.652,00
Excl. VAT
Excl. VAT
Excl. VAT
€ 1.652,00
Excl. VAT
Excl. VAT
Excl. VAT
SKU
46BM24-P8550-WU
Product Line
eX-TREME
Product Type
Shock
Brand
BMW
Model
M 1000 XR
Model Year
2024 - 2027
Height
Standard
Installation location
REAR
Damping adjustment
Electronic & Compression High + Low Speed
Damping system
Separated oil/gas with reservoir
Piston diameter (mm)
46
Preload adjustment
Hydraulic, with knob
Spring type
Linear, included
Spring rate default (N/mm)
180
Rebound Position
Cable exit (0 deg)
High Speed Compression Position
10
Low Speed Compression Position
10
Preload Spring (mm)
9 +12/-3
Spring -2 (Rate-Length)
160-180
Spring -1 (Rate-Length)
170-180
Spring default (Rate-Length)
180-180
Spring +1 (Rate-Length)
190-180
Spring +2 (Rate-Length)
200-180
Spring -2 Stock Code
46100062
Spring -1 Stock Code
46100051
Spring default Stock Code
46100052
Spring +1 Stock Code
46100053
Spring +2 Stock Code
46100064
Shock Length
388
Stroke M to M
54
Pressure
15
Bottom Angle A
See remark
Pa Angle A
215
Pa Angle B
245
Reservoir Length
80.00
Length Cable
Max
Mount Upper Diameter
12.00
Mount Upper Width
38
Mount Lower Diameter
12.00
Mount Lower Width
38
Remarks1
Bleed 1,0
Remarks2
Pre-drilled hole 65deg
Remarks3
Stickers like layout
